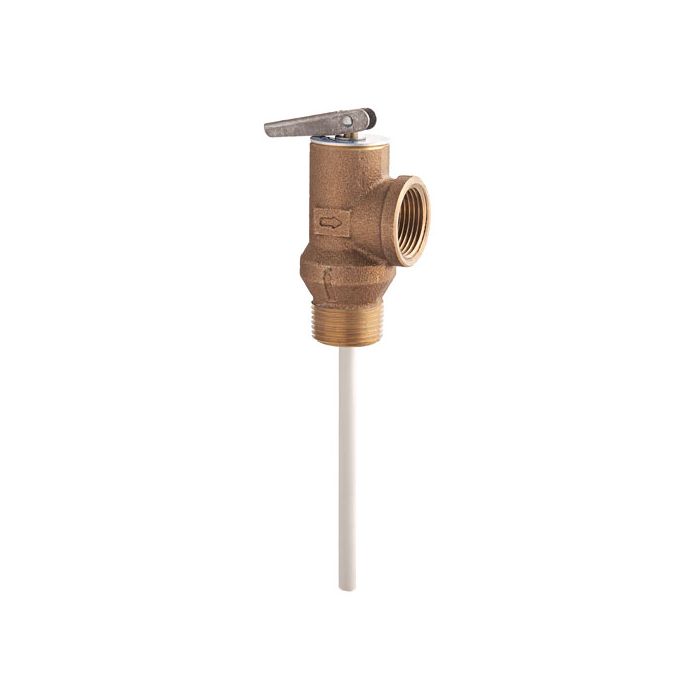

Watts 0121344 3/4 IN Lead Free Self Closing T and P Relief Valve, 175 psi, 210 degree F, Test Lever, 4 IN Ext Thermostat
3/4 IN Lead Free Self Closing T and P Relief Valve, 175 psi, 210 degree F, Test Lever, 4 IN Ext Thermostat
Watts 0121344 3/4 IN Lead Free Self Closing T and P Relief Valve, 175 psi, 210 degree F, Test Lever, 4 IN Ext Thermostat
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 4 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 175 psi (12.07 bar).
Features
- Unique thermostat with special thermo-bonded coating
- ASME rated and CSA listed
- Lead free copper alloy body construction
- Protects against excessive temperature and pressure during emergency conditions
| Specifications | |
|---|---|
| Body Material | Lead Free Copper Silicon Alloy |
| Brand Name | Watts |
| Buy American Act Compliant | USA |
| EAN | 098268583175 |
| GPM-When Relieved | Does Not Apply to Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | YES |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 131 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0121344 |
| Pressure Range | Does Not Apply To Product |
| Pressure Relief Setting-PSI | 175 |
| Pressure Steam Discharge Capacity | 200,000 BTU per hour |
| Protection Type | Temperature And Pressure |
| Series | LF100XL |
| Shank Length | 1 1/8 IN |
| Temperature Relief-Fahrenheit | 210 |
| Temperature Steam Discharge Capacity | 105,000 BTU per hour |
| Thermostat Material | Copper |
| Thermostat Probe Length | 4 IN |
| Brand | Watts |
|---|---|
| SKU | '0121344 |
| UPC | 098268583175 |
