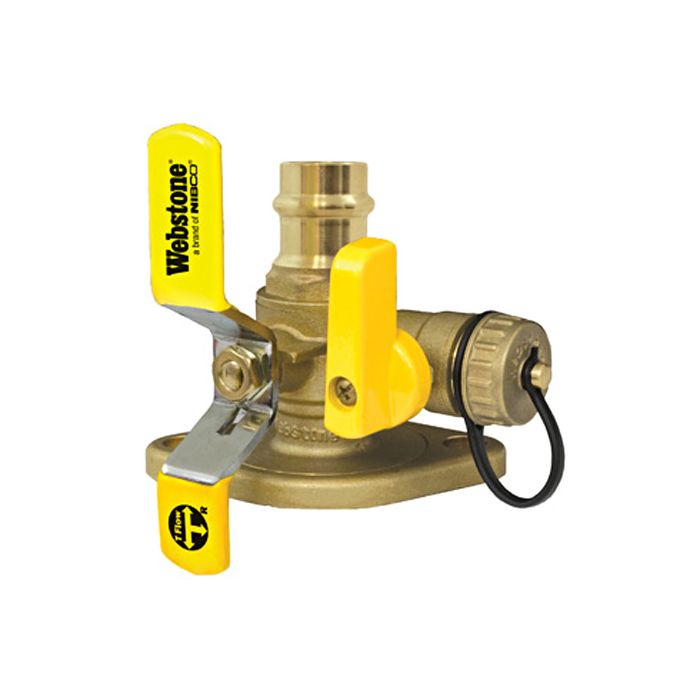

Webstone H-81417HV 2" PRS Isolator W/Mf Drn & Rot Flg High Velocity- FP Brass Ball Valve - W/Adj Packing Gland Nuts & Bolts - 250 Cwp / 250F Max

Webstone H-81417HV 2" PRS Isolator W/Mf Drn & Rot Flg High Velocity- FP Brass Ball Valve - W/Adj Packing Gland Nuts & Bolts - 250 Cwp / 250F Max

The Isolator w/ Rotating Flange & Multi-Function Drain

Full Port Forged Brass Uni-Flange Ball Valve w/ Detachable Rotating Flange, Multi-Function Hi-Flow Hose Drain, Adjustable Packing Glands, Nuts & Bolts

1 BODY BRASS

 2 SEAT PTFE

3 STEM BRASS

4 STEM SEAL PTFE

5 BALL BRASS CP

6 END CAP BRASS

7 HANDLE PLATED STEEL

8 PACKING GLAND BRASS

9 DRAIN SEATS PTFE

10 DRAIN BALL BRASS CP

11 DRAIN STEM BRASS

12 DRAIN END CAP BRASS

13 DRAIN HANDLE EPOXY COATED ALUMINUM

14 STEM SEAL PTFE

15 PACKING GLAND BRASS

16 HANDLE NUT STAINLESS STEEL

17 RETAINER STAINLESS STEEL

18 FLANGE BRASS

19 SCREW STAINLESS STEEL

20 GASKET EPDM

21 CAP BRASS

22 WASHER STAINLESS STEEL

23 STRAP PVC

24 FLANGE BOLTS STAINLESS STEEL

25 HEX NUTS STAINLESS STEEL

Connection Type Press x Rotation Flange

Size (In) 2

Pressure Rating 250 PSI CWP

Max Temp Max 250ºF Max
