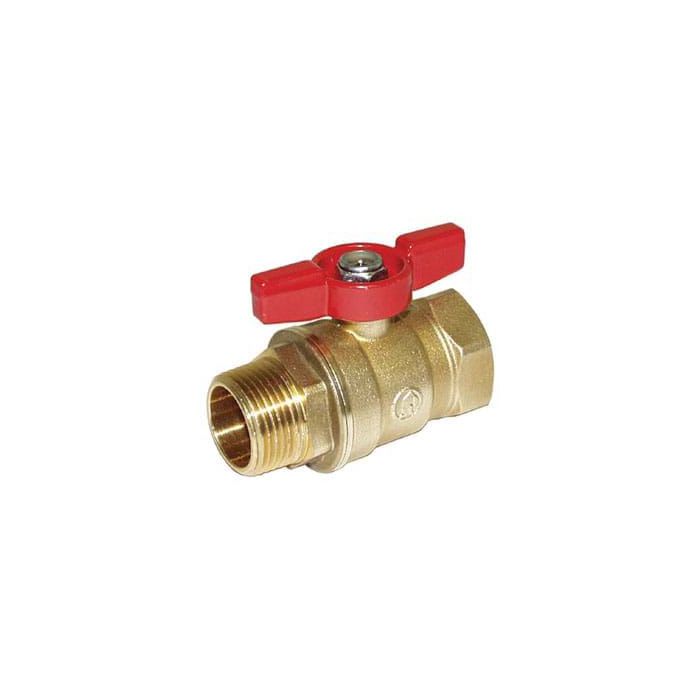

Legend 101-531 1/4" Forged Brass Ball Valve MNPT x FNPT Tee Handle

Legend 101-531 1/4" Forged Brass Ball Valve MNPT x FNPT Tee Handle

T-900 M x F and T-900 M x F-T MALE X FEMALE LARGE-PORT BALL VALVE

Durable forged brass construction

Space-saving male-by-female end connections are ideal for confined piping installations

T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve

Bottom-loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut

Improved 3M Dyneon* TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly

Available in sizes 1/8" to 1" equipped with a lever handle or T-handle

Working Pressure, Non-Shock (PSI)

Cold working pressure (CWP): 1/8" to 3/4": 600 1": 500

Saturated steam (WSP): 150 psi

• CSA Certified for use with natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures (sizes 1/2" to 1"):

• ASME B16.44, for use as a manual shutoff valve in house piping systems up to 5 psig

• Threaded end connections conform to ANSI / ASME B1.20.1

•UL Listed 757X for fire protection sprinkler system service (sizes 1/2" to 1")**:

• Manufactured in an ISO accredited facility

• VQGU.EX4196 Valves, Trim and Drain
