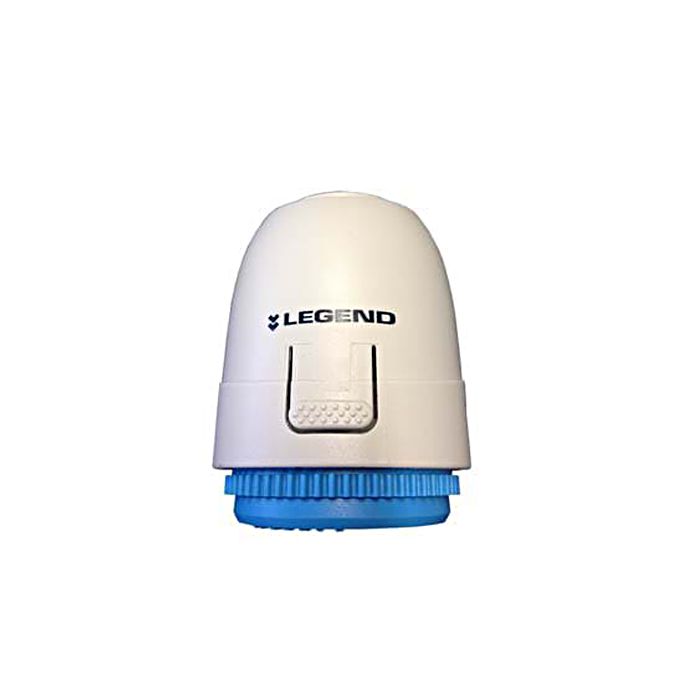

Manifold Circuit Actuator - 8330 Series CIRCUIT ACTUATOR

Condition in absence of voltage Normally Closed NC.

First open function*

Valve working stroke 0.16” (4mm).

Class II dust protection.

Opening time at 77°F ≈ 3.5 minutes.

Working ambient temperature: 32°F - 140°F .

Storage ambient temperature: -13°F - 140°F.

Fluid temperature : 0°F - 212°F .

Mountable in any orientation.

Valve position indicator on top of valve casing.

Double insulated electrical enclosure.

Reliable thermo-electric operation.

Noiseless and maintenance-free.

Technical Data:

Supply voltage: 24VAC

Max Inrush current: <300mA (7.2VA) for 2 minutes max

Operating current: 1 Watt (1.0VA)

Opening/Closing time: approx 3.5 minutes

End Switch:

- Normally Open (NO)

- 24VAC, 0.5mA max

- Makes at about 50% of stroke

Wiring info:

- 24VAC Power - Yellow wires

- End switch - Red wires
