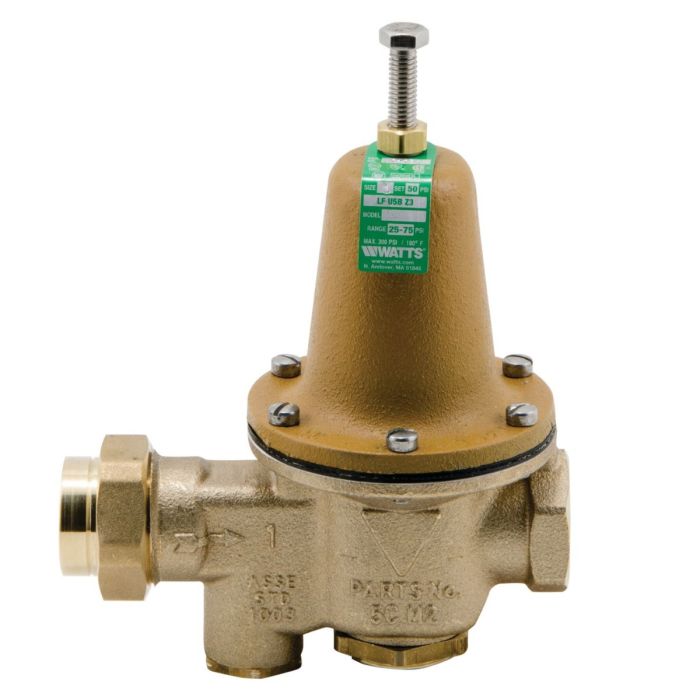

Watts 0009118 LFU5B-Z3 3/4" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Adjust 25-75 psi

$437.87
Overstock Qty
Only 10 left
SKU
'0009118

Watts 0009118 LFU5B-Z3 3/4" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Adjust 25-75 psi

Watts 0009118 LFU5B-Z3 3/4" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Adjust 25-75 psi

This 3/4 inch high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body, 3/4 inch NPT threaded female union inlet x NPT female outlet, replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Product Features

  • Integral stainless steel strainer removable for cleaning
  • Sealed spring cage with stainless steel cage screws
  • Serviceable in line without special tools
  • High temperature resistant reinforced diaphragm for hot water
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
Brand Name Watts
Corrosion Resistant Coating Yes
Disc Material EPDM
EANUCCCode 098268327533
Gauge Option No Gauge
GDS Status Registered
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 160
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009118
Series LFU5B-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Stainless Steel
Valve Style Standard
