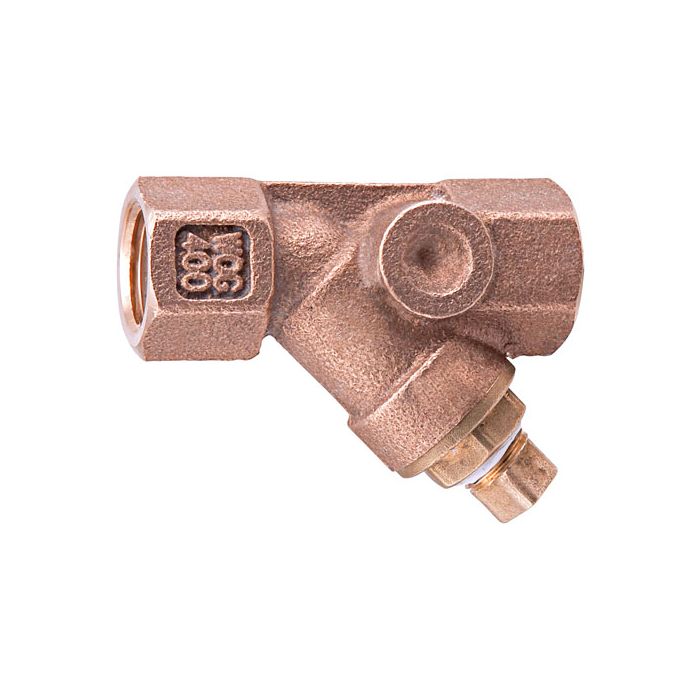

Watts 0379114 1 1/4 In Bronze Wye Pattern Strainer, Thread, 20 Mesh Screen, Tapped Retainer Cap, Closure Plug

Watts 0379114 1 1/4 In Bronze Wye Pattern Strainer, Thread, 20 Mesh Screen, Tapped Retainer Cap, Closure Plug

This 1 1/4 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Features

Retainer cap tapped for closure plug
Wye pattern
Lead free construction
Threaded end connections

Specifications
Blowdown Outlet Connection	Female Threaded
Blowdown Outlet Size	1/2 IN
Body Material	Brass
Body Pattern	Wye
Bolt Material	Does Not Apply To Product
Brand Name	Watts
Buy American Act Compliant	NO
EAN	098268285628
Epoxy Coating Type	None
Flange Material	Does Not Apply To Product
Gasket Material	NBR
Grooved Coupling Material	Does Not Apply To Product
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Celsius	178.00
Maximum Operating Temperature-Fahrenheit	210
Maximum Pressure And Temperature	400 PSI at 210 degree F; 125 PSI at 353 degree F
Maximum Pressure-BAR	27.60
Maximum Pressure-PSI	400
Maximum Working Pressure And Temperature	400 PSI at 210 degrees F
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0379114
Plug Material	Brass
Pressure-Temperature Rating	400 PSI at 210 degree F
Pressure-Temperature Rating-BAR	27.6 BAR at 99 degree C
Retainer Cover Material	Lead Free Cast Copper Silicon Alloy
Retainer Cover Type	Tapped with Closure Plug
Screen Material	Stainless Steel
Screen Size	20 MESH
Series	LF777SI
Strainer Type	Wye
WOG Rating	400 PSI at 210 degrees F

More Information

More Information
Brand	Watts
SKU	'0379114
UPC	098268285628
