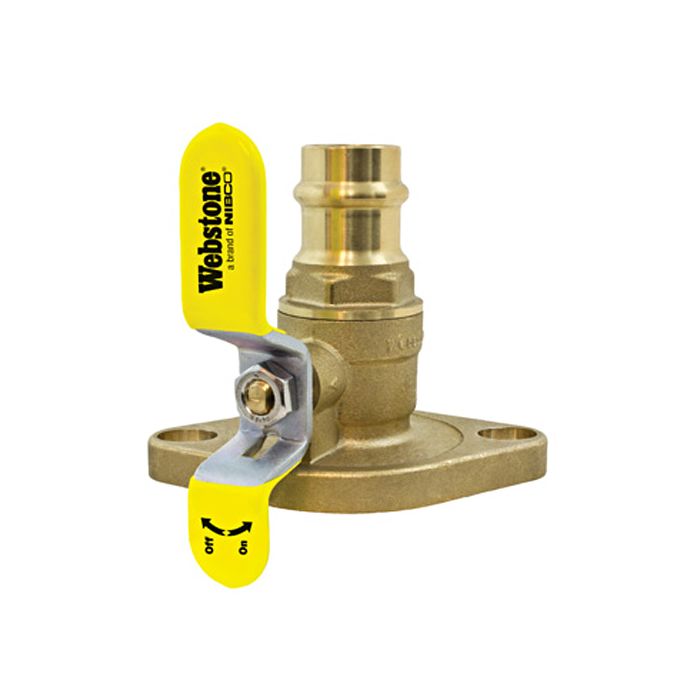

Webstone 81404HV 1" PRS Isolator W/Rot Flg High Velocity- FP Brass Ball Valve - W/Adj Packing Gland Nuts & Bolts - 250 Cwp / 250F Max
1" PRS Isolator W/Rot Flg High Velocity- FP Brass Ball Valve - W/Adj Packing Gland Nuts & Bolts - 250 Cwp / 250F Max
Webstone 81404HV 1" PRS Isolator W/Rot Flg High Velocity- FP Brass Ball Valve - W/Adj Packing Gland Nuts & Bolts - 250 Cwp / 250F Max
The Isolator w/ Rotating Flange
Full Port Forged Brass Uni-Flange Ball Valve w/ Detachable Rotating Flange, Adjustable Packing Gland
Nuts & Bolts
1 BODY BRASS
2 END CAP BRASS
3 BALL BRASS CP
4 SEAT PTFE
5 STEM BRASS
6 PACKING GLAND PTFE
7 PACKING NUT BRASS
8 HANDLE STEEL CP
9 HANDLE NUT STAINLESS STEEL
10 ROTATING FLANGE RING STAINLESS STEEL
11 ROTATING FLANGE BRASS
12 FLANGE BOLTS STAINLESS STEEL
13 FLANGE NUTS STAINLESS STEEL
Connectiton Type: Press x Rotating Flange
Size (in): 1
Pressure Rating: 250 PSI CWP Max
Max Temp: 250ºF Max
| Brand | Webstone |
|---|---|
| SKU | 81404HV |
| UPC | 018394814042 |
| Enable Dropship | No |
