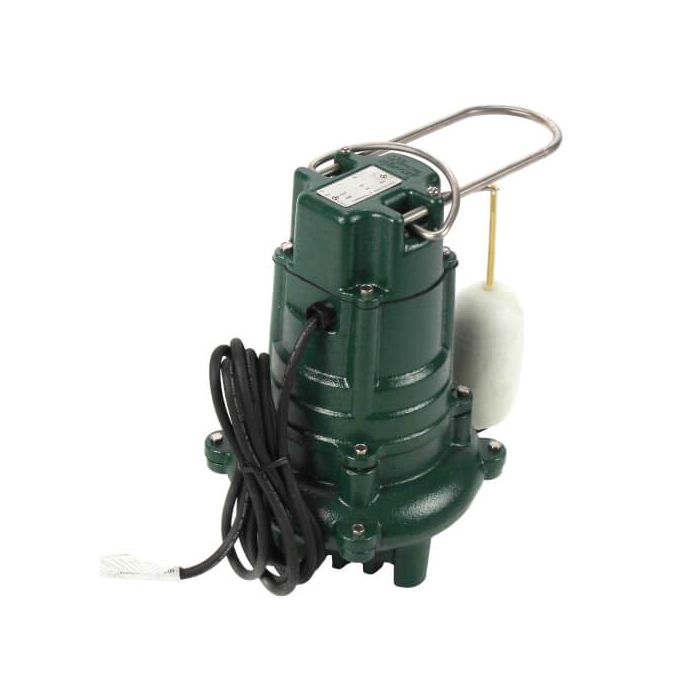

Zoeller 137-0001 Model 137 Flow-Mate Cast Iron Effluent Pump

Zoeller 137-0001 Model 137 Flow-Mate Cast Iron Effluent Pump

Description

Pumps must be operated in upright position.

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.

Features

Castings - Model 137, all cast iron ASTM class 25, 2500# tensile strength.
Corrosion resistant powder coated epoxy finish
Durable cast iron construction - switch case motor and pump housing, base and impeller
Float operated 2 pole mechanical switch (automatic units only)
No sheet metal parts to rust or corrode
Oil filled and hermetically sealed, automatic reset thermal overload protected (1 Ph) motor
Upper and lower sleeve bearings running in bath of oil
Carbon and ceramic shaft seal
Stainless steel screws, bolts, guard, handle, arm and seal assembly
Maximum temperature for effluent or dewatering 130°F (54°C) (extra duty 140°F 60°C)
Passes 5/8" spherical solids
No screens to clog
1-1/2" NPT discharge (1-1/2" x 2" PVC Adapter fitting included with BN & BE Models)
On point: 10"
Off point: 2 3/4"
Simplex and duplex systems packaged systems available
Variable level control systems available designed for heavy duty effluent applications

Specs

Type:

Automatic

Application:

Plumbing

Material:

Cast Iron

Horse Power:

1/2

Voltage:

115v

Hertz:

60

Phase:

1

RPM:

1725

Cord Type:

UL Listed 3-Wire Neoprene Cord & Plug

Cord Length:

10'

Shutoff Head (ft.):

26

Flow at 5 FT Head:

93 GPM

More Information

More Information
Brand	Zoeller
SKU	137-0001
UPC	053514013943
Enable Dropship	No
